GARMIN ECHOMAP UHD2 72SV 7" TOUCH CHARTPLOTTER + TRANSDUCER

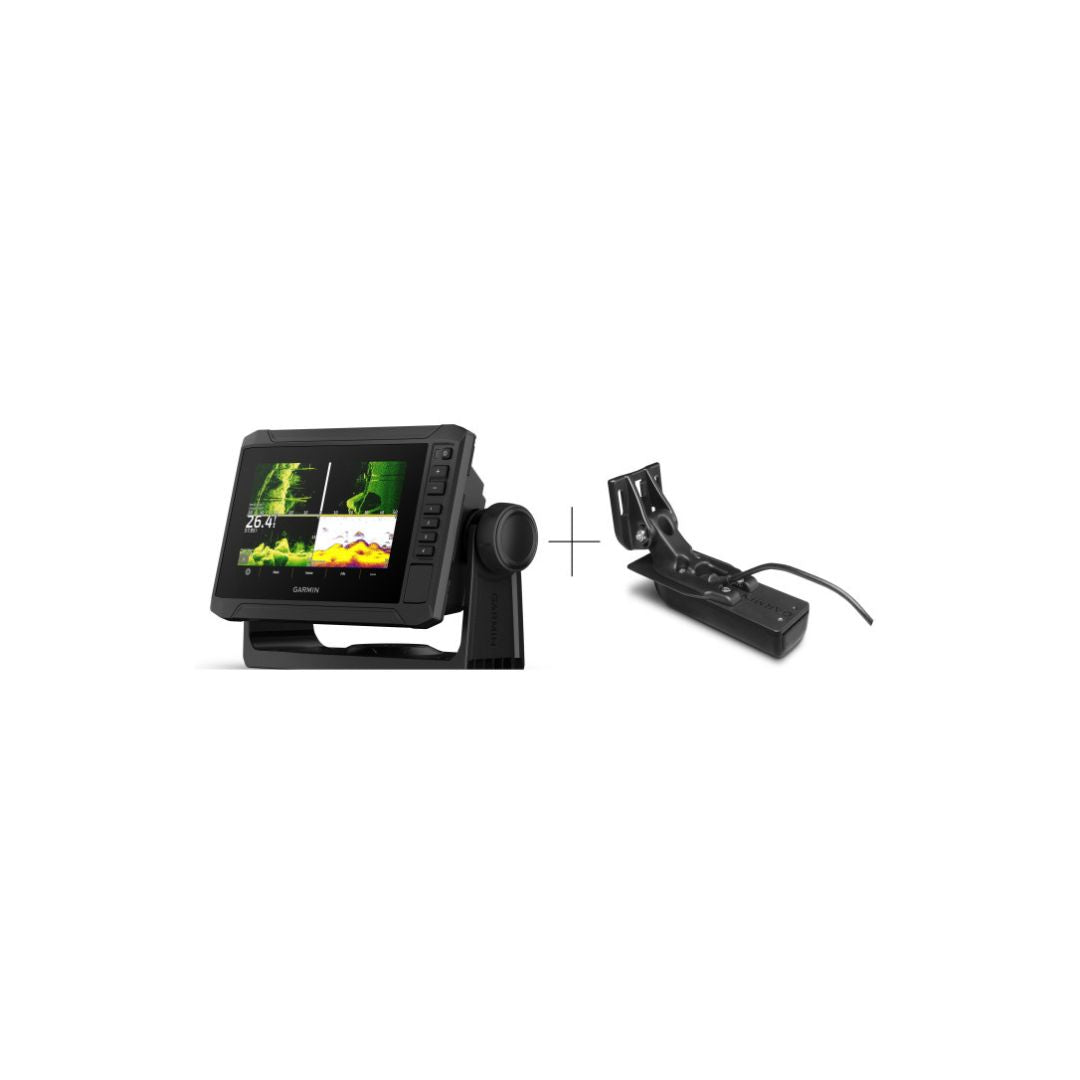

Garmin ECHOMAP™ UHD2 72sv 7" Touch Chartplotter/Fishfinder with GT54UHD-TM Transducer

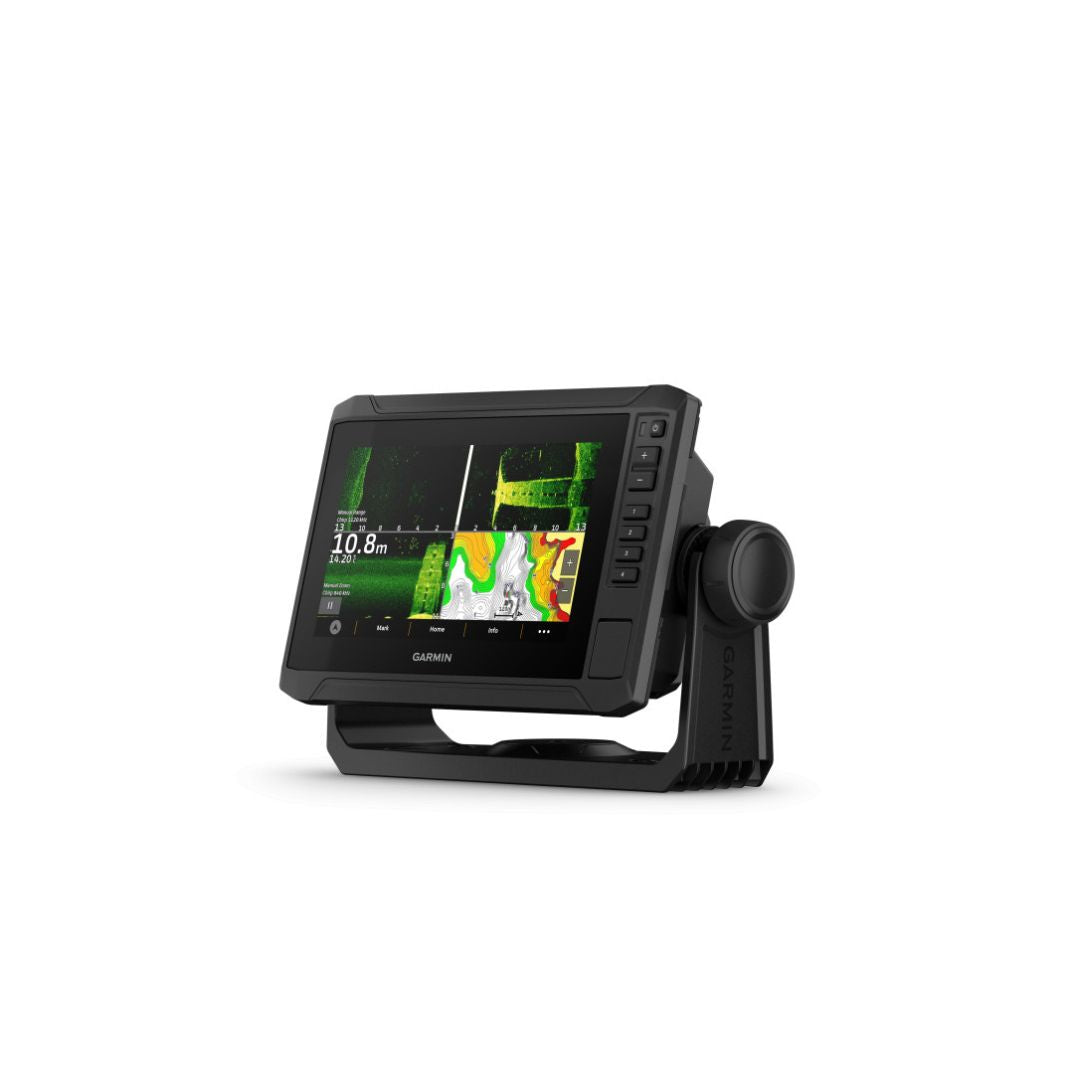

The Garmin ECHOMAP™ UHD2 72sv is a high-performance 7-inch chartplotter and fishfinder that combines premium sonar capabilities, advanced mapping support, and a responsive touchscreen with keyed assist. Designed to help you spend less time searching and more time fishing, it delivers ultra-clear sonar images and reliable navigation in a compact, sunlight-readable display.

Paired with the GT54UHD-TM transducer, the system provides Garmin CHIRP traditional sonar along with Ultra High-Definition ClearVü and SideVü scanning sonar. This combination offers exceptional target separation, crisp structure detail, and wide coverage around the boat.

Built-in Wi-Fi enables connection to the ActiveCaptain® app, allowing you to manage maps, transfer data, receive notifications, and access the Quickdraw™ Community. The unit also supports a wide range of optional charts, networking features, and accessories, making it a versatile solution for both freshwater and coastal anglers.

Features

• 7" sunlight-readable touchscreen with keyed assist

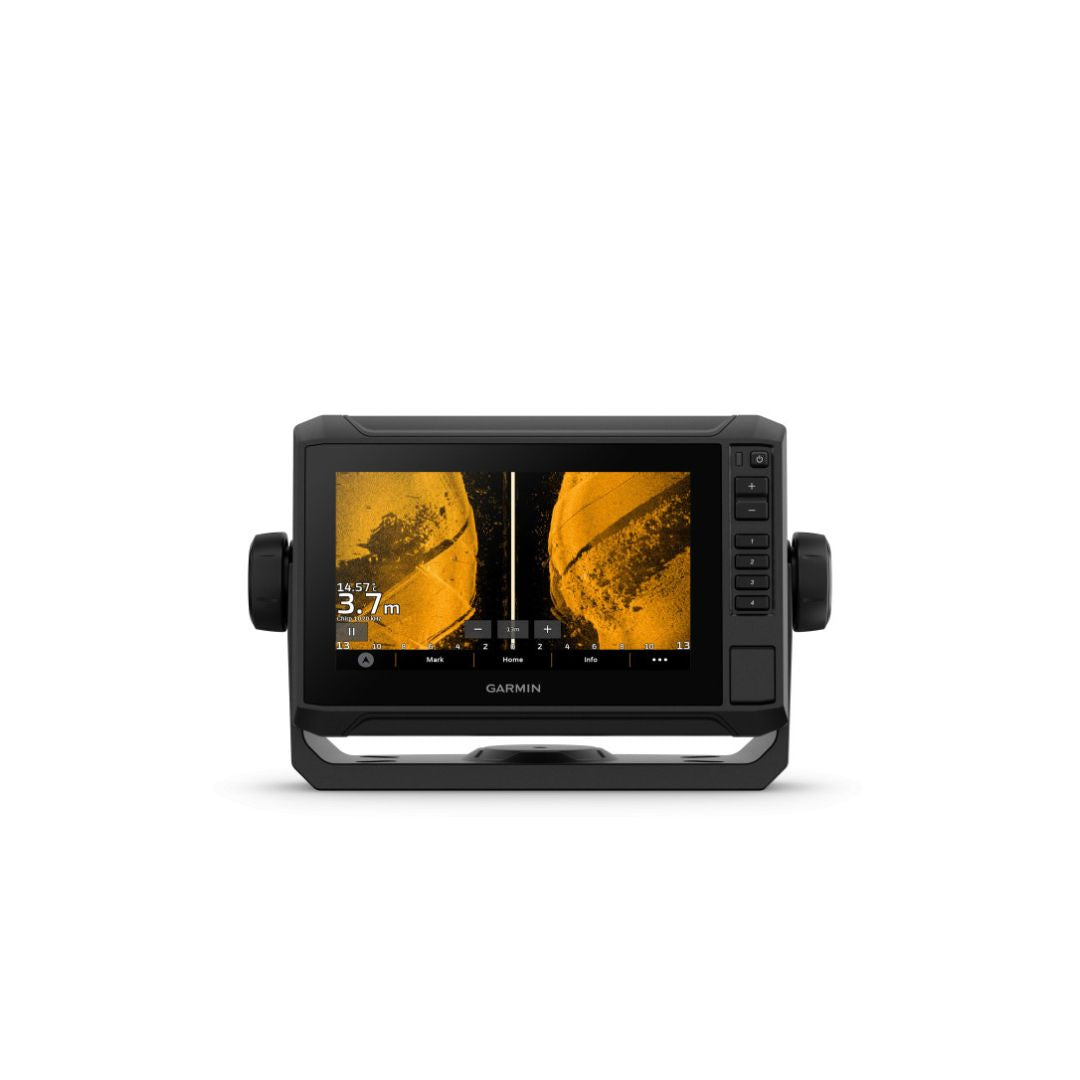

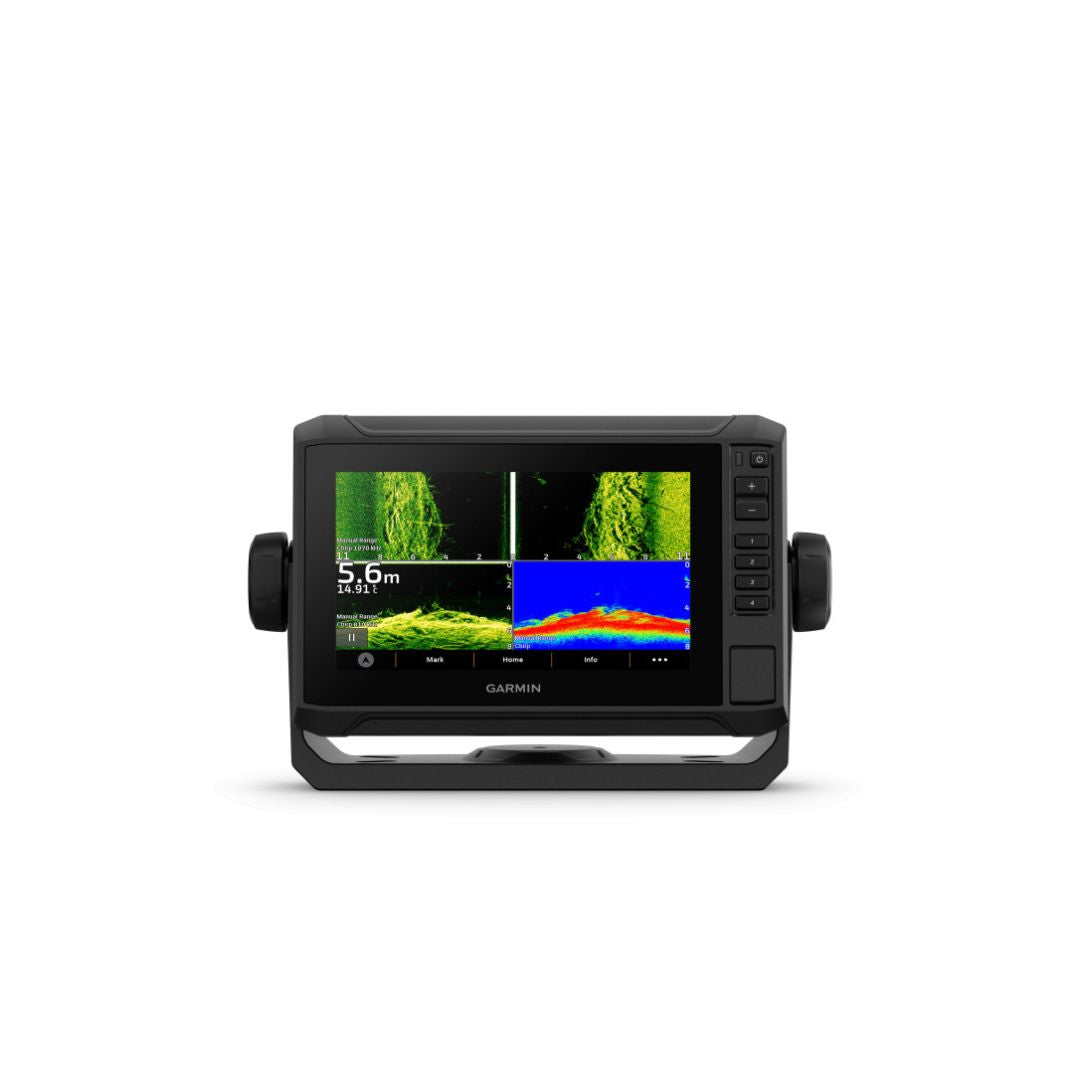

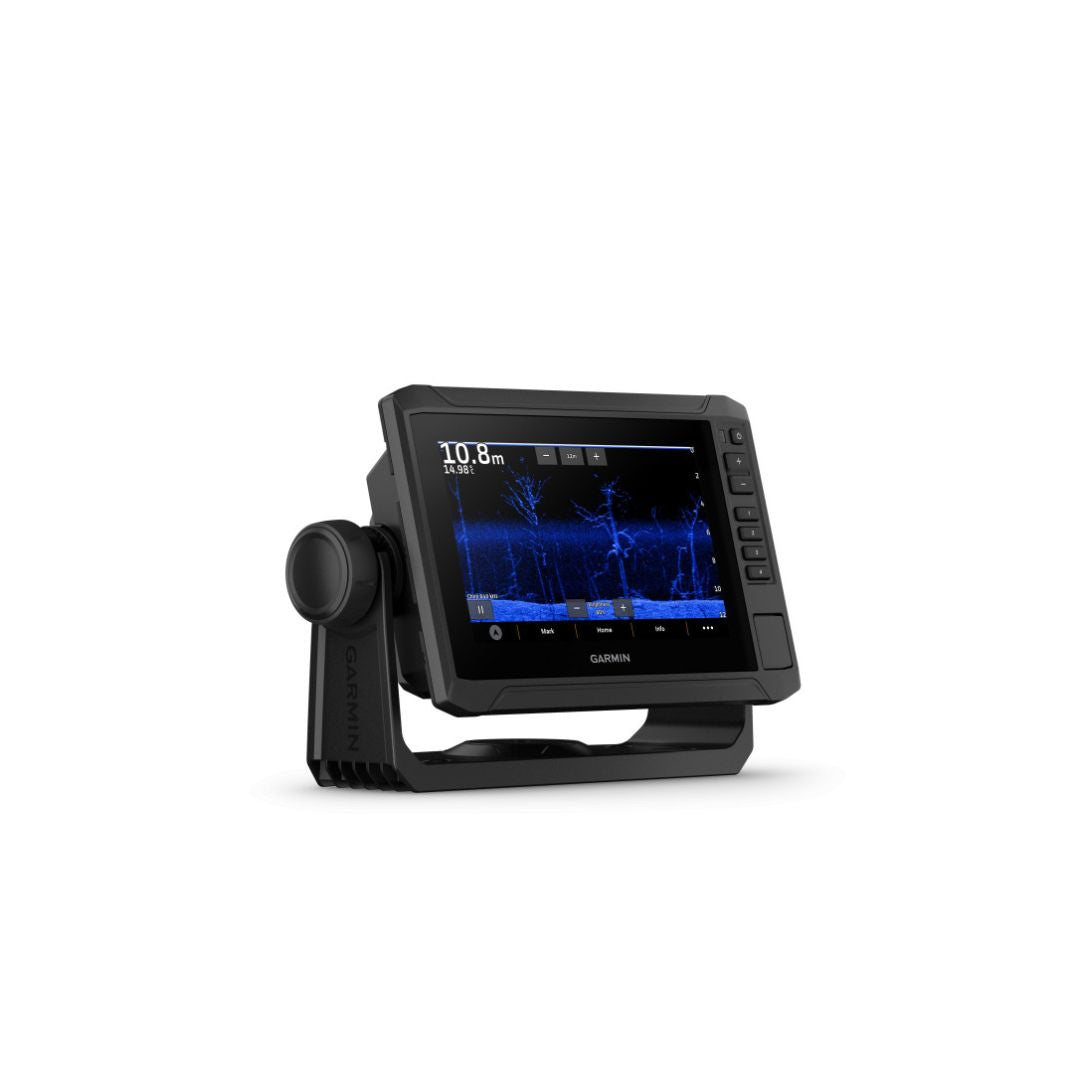

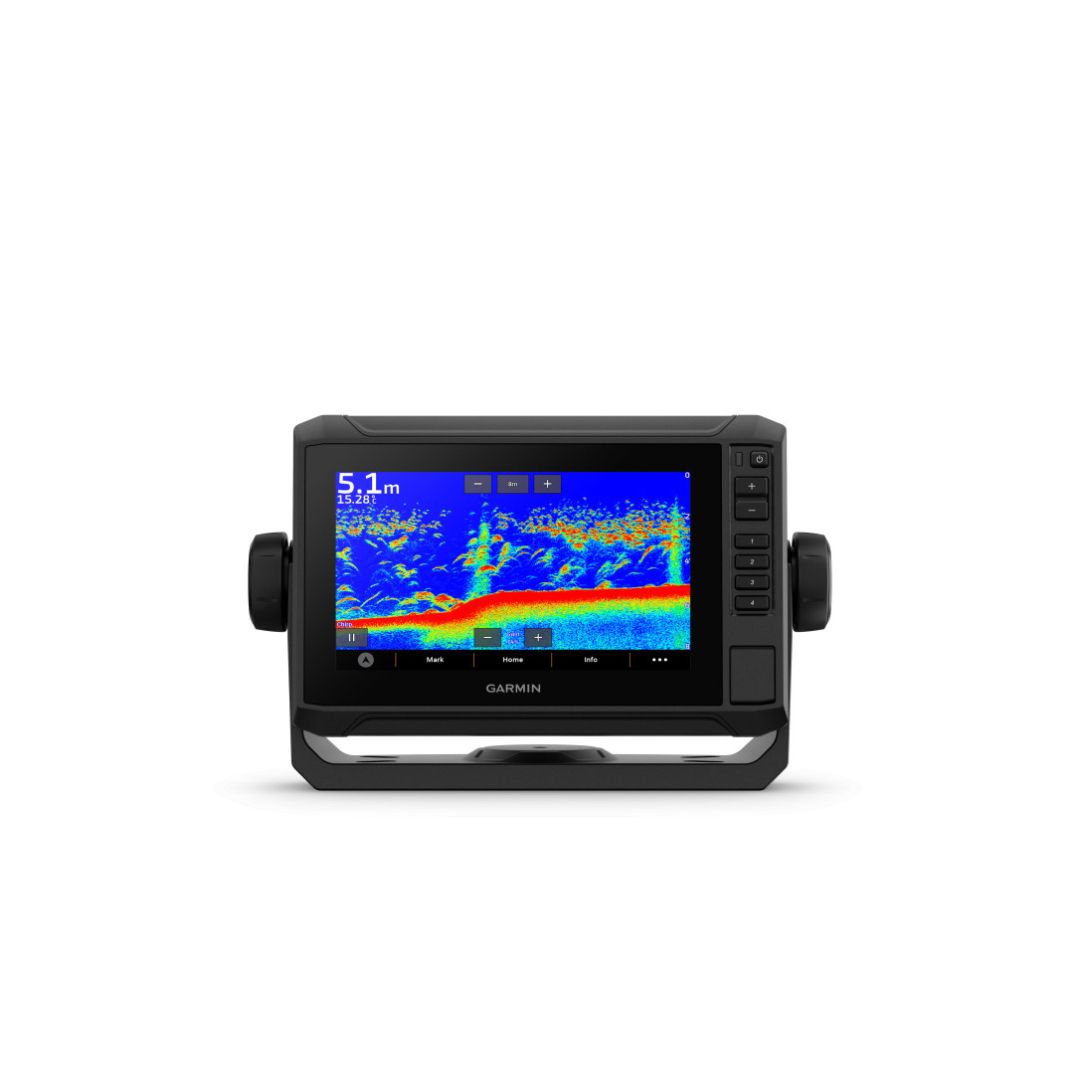

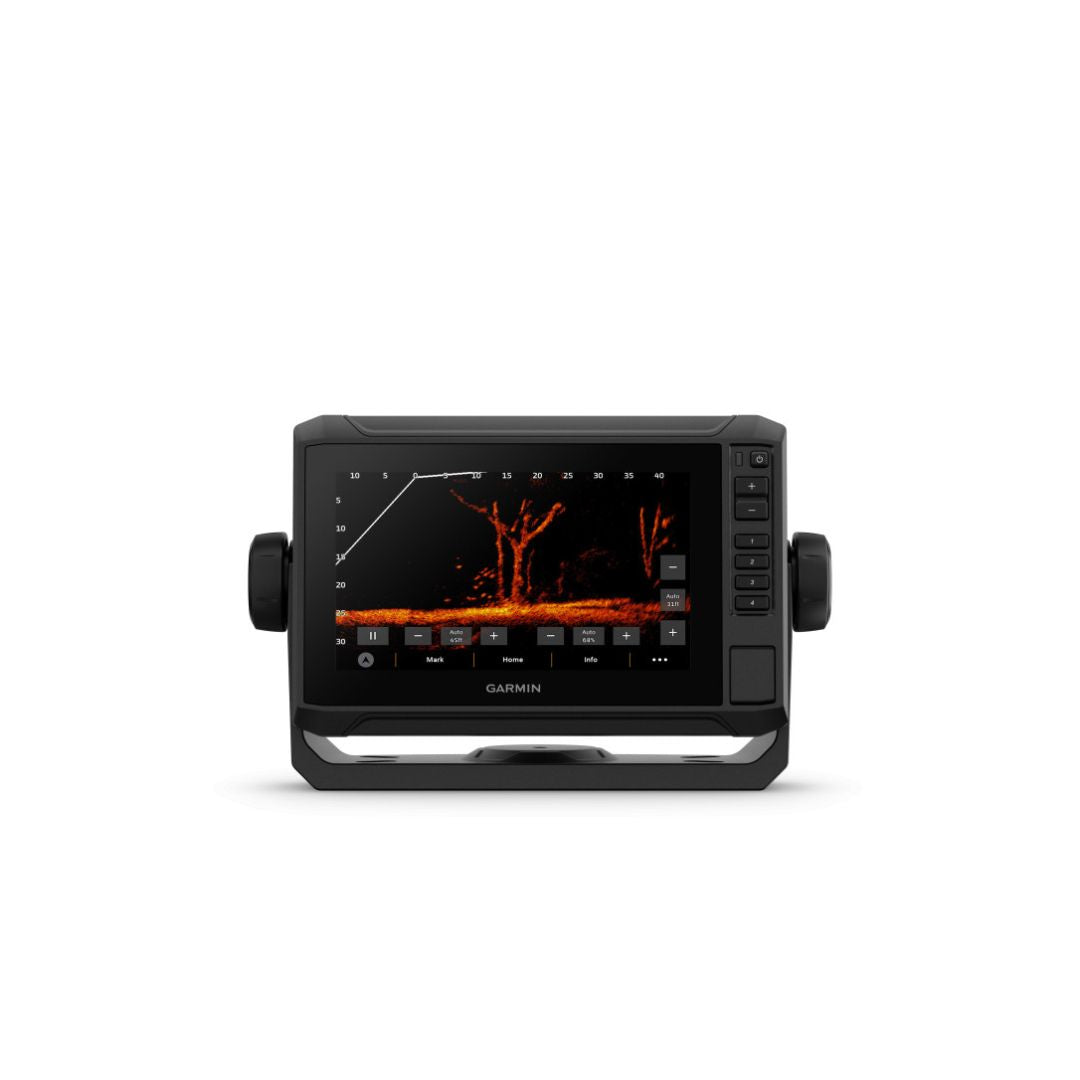

• CHIRP traditional sonar plus Ultra High-Definition ClearVü and SideVü scanning sonar

• Includes GT54UHD-TM transducer

• Built-in high-sensitivity GPS

• Quickdraw Contours for creating custom maps with 1-foot contours

• Wi-Fi connectivity with ActiveCaptain® app support

• Network capable (7" and 9" models) for sharing sonar, maps, and user data

• NMEA 2000® and NMEA 0183 compatibility

• Force™ trolling motor integration

• Support for optional Garmin coastal and inland charts

Specifications

Display

• Display size: 7.0" diagonal (17.8 cm)

• Resolution: 800 × 480 pixels

• Display type: WVGA touchscreen

• Water rating: IPX7

Physical

• Dimensions: 25.0 × 13.9 × 5.1 cm

• Weight: 0.77 kg

• Mounting options: Bail or flush

GPS & Mapping

• Built-in 5 Hz GPS receiver

• Waypoints: 5,000

• Track points: 50,000

• Tracks: 50 saved tracks

• Navigation routes: 100

• Data cards: 1 microSD (up to 32 GB)

• Supported mapping:

  • BlueChart® g3 and g3 Vision

  • LakeVü g3 and g3 Ultra

  • Garmin Navionics+™ and Vision+™

  • Garmin Quickdraw Contours

Sonar

• Power output: 500 W

• Traditional sonar: Single-channel CHIRP (70/83/200 kHz, L, M, H CHIRP)

• ClearVü: 260/455/800/1000/1200 kHz

• SideVü: 260/455/800/1000/1200 kHz

• Supports Panoptix™ and LiveScope™ systems (optional)

Electrical

• Power input: 9–18 V DC

• Typical current draw: 0.8 A at 12 V

• Max current draw: 1.25 A at 12 V

• Max power usage: 15 W

Connections

• NMEA 2000® port: 1

• NMEA 0183 input: 1

• NMEA 0183 output: 1

• Garmin Marine Network: 1 Panoptix™ port

• 12-pin transducer port: 1

In the Box

• ECHOMAP™ UHD2 72sv chartplotter (with worldwide basemap)

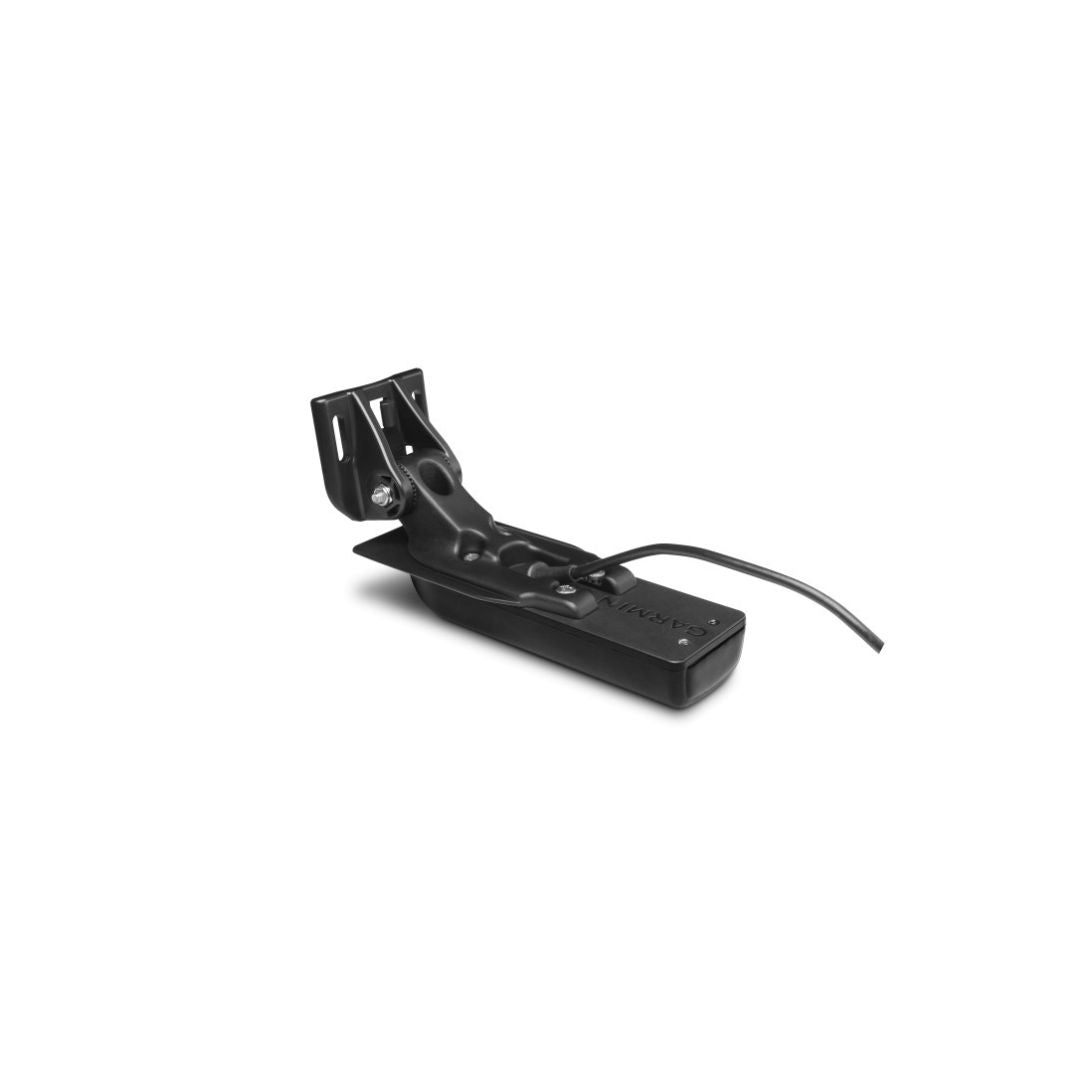

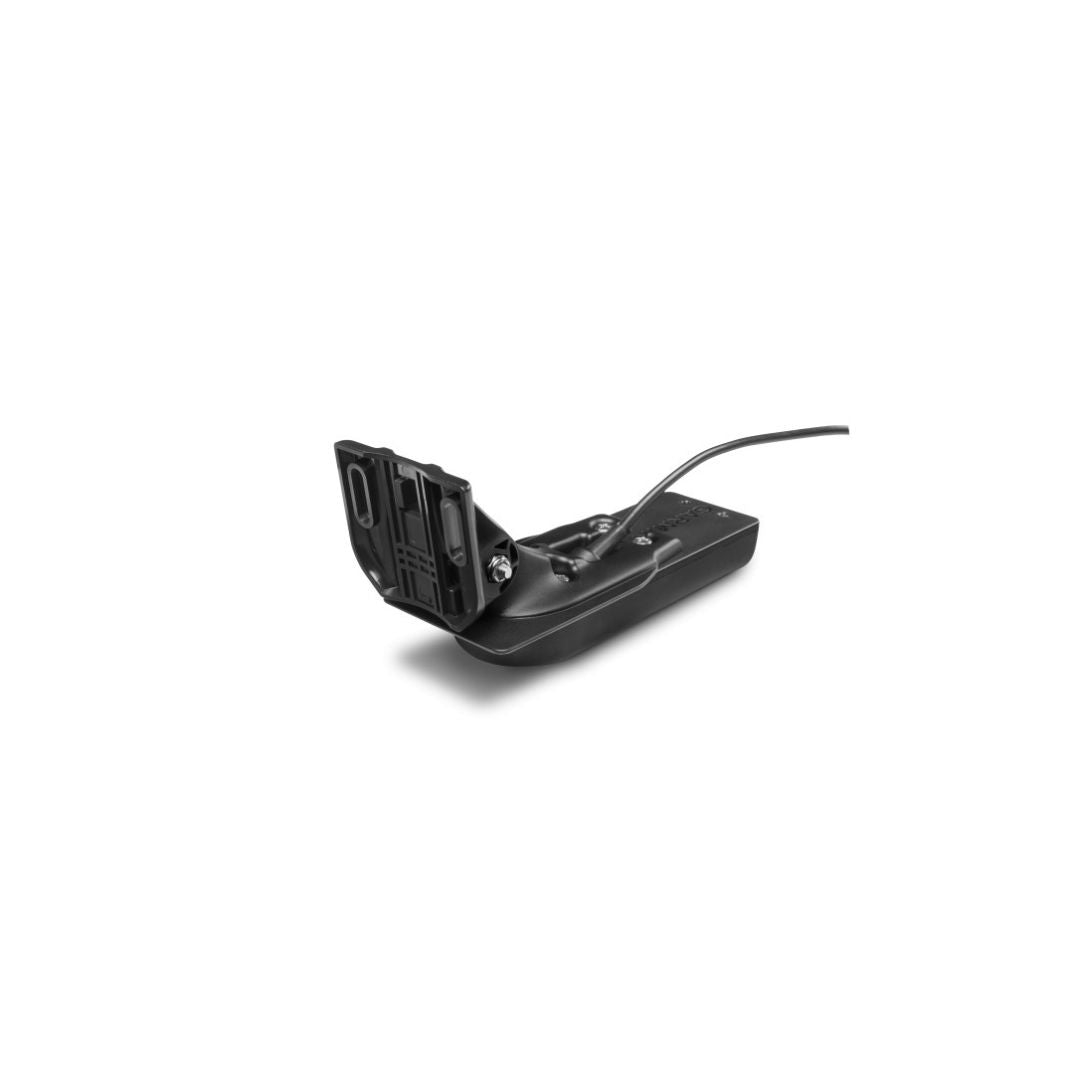

• GT54UHD-TM transducer

• Power/data cable

• Tilt/swivel mount with quick-release cradle

• Flush mount

• Protective cover

• Mounting hardware

• Documentation
